EXE Yixie is a focus on high-end PCB automatic depaneling machine R & D and manufacturing, the company was founded in 2000 in Taipei, Taipei, 2010 will be the production base in Dongguan, China, company focusing on the research and development of PCBA automatic board parting machine, milling cutter board parting machine and online board parting machine. Production, sales and service as one of the enterprises.
Why Choose Us
Our factory
The factory covers an area of 1500 square meters, houses several specialized workshops and professional production lines. This setup ensures a stable output of high-quality drill bits each month. Our competitive edge lies in the quality of our products, crafted from top-notch tungsten carbide material.
Product Application
Yixie has experienced R&D design team and perfect after-sales service system, the products are used in high-end manufacturing industry PCBA sub-board such as smart phones. Smart wearable. Smart home. Tablet computers. Automotive electronics. Medical instruments. Aerospace. Military industry. Household appliances and other fields.
Our Service
After-sales staff are on call 24 hours a day.Regardless of Saturdays, Sundays and holidays.365 Day Overall equipment warranty period.Free after-sales maintenance and replacement.

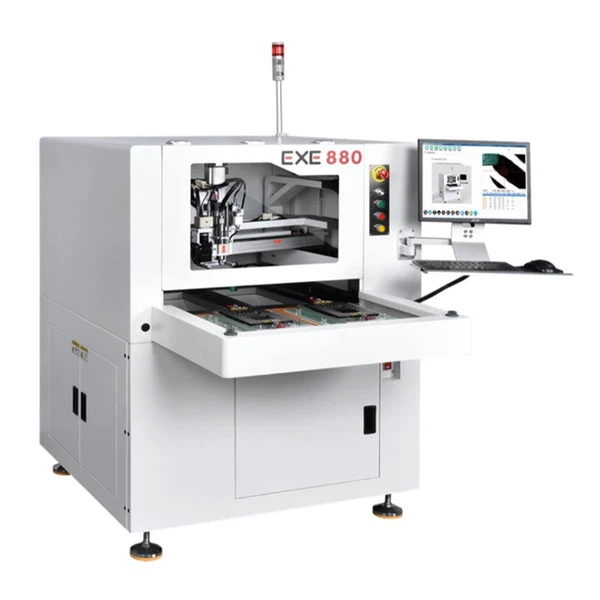

PCB depaneling router machine is an important process in the PCB manufacturing process. PCB router refers to cutting the graphics required by the customer through the bit according to the processing program designed by the project. When the milling cutter is worn to a certain extent, it will break the knife and lead to leakage. If the production board with good bit is not delivered to the customer according to the customer's requirements, PCBA (printed circuit board + assembly refers to the whole process of PCB empty board passing through SMT and then dip plug-in) cannot be successfully installed on the product, resulting in PCBA scrapping.
If the thickness of the PCB board is equal to or greater than the length of the tool, the rotation of the fixed structure above the tool will burn the PCB board during rough routing. In order to avoid the damage of burning the PCB board caused by the rotation of the fixed structure above the tool, the fixed structure needs to form a gap with the PCB board.
Features of our PCB depaneling router machine:
1. Table type single bench cutting machine, with speed up to 100mm/s and positioning speed of 500mm/s.
2. Continuous cutting without interruption during loading and unloading.
3. The high-quality rotating shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity and maintain high precision.
4. Use high-quality hardware to ensure high rigidity and high performance.
5. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the rotating shaft.
Laser Depaneling is During the depaneling process, the previously manufactured and assembled printed circuit boards (PCBs) are cut out of the panel using a suitable separation process/tool. In the case of laser depaneling, the singulation process is performed by a focused laser beam that ablates the material layer by layer.
In case of laser depaneling, the thermal energy of the laser is used to remove the material path by path / layer by layer. With each repitition, a pre-defined thickness of the material is ablated and vaporised. The resulting fumes are extracted during the process by a powerful suction system. Due to the small particles and the powerful suction, the deposition of residues is reduced to a minimum. In addition, the thermal energy is regulated during the entire process in such a way that, depending on the specific requirements, there is no or only very little carbonisation of the material.
Due to the layer-by-layer ablation process of the laser, it is not only possible to cut through the boards completely, but also to remove individual layers or predefined thicknesses of the material. Due to the precision and filigree of the laser, ablations can be performed with an accuracy of a few µm.
Components of PCB Depaneling Machine
Double worktable structure
The milling cutter type online splitter uses double slide rails and cylinders to run on two platforms. It can cut different types of products at the same time, greatly reducing the waiting time for picking and placing plates, and at the same time, the double platform can be changed to a large single platform,Thus Increasing the working size and greatly improves the flexibility of the equipment.
Upper vacuum spindle structure
The high-speed imported spindle is used to cut the sub-board, which greatly reduces the cutting stress, with high precision, small inertia and fast response.
The milling cutter detection system monitors the milling cutter status in real-time and effectively prevents the cutter from running even after the cutter is broken.
The new visual system, uniform ring light source, with brightness adjustment function, makes various types of Mark points better to identify, and adapt to such as tin-plated, copper-plated, gold-plated, tin-sprayed, and various types of PCBs with different colors. The whole system is equipped with a vision Alignment compensation function.
Upper vacuuming method structure
CNC dedicated controller
The independent CNC dedicated controller integrates the control part, with strong loop control stability, high precision, fast response and transmission, and strong anti-interference.
Dust collector
High-efficiency motor and fan blades are used, with large suction, built-in polyester needle-punched felt dust bag with large void ratio, good air permeability, strong oxidation resistance, and noise can be controlled within 80 decibels.
Specifications of PCB Depaneling Machine
|
Cutting Speed |
0~1000mm/sec. |
|
Power consumption |
3KVA |
|
Dust Collector |
3HP Bottom suction |
|
Power supply of Dust Collector |
220V (380V)3ɸ |
|
Router Dimension (W*D*H) |
(DS) 1240*1466*1673mm |
Our Certificate
FAQ
We're professional PCB depaneling machine manufacturers and suppliers in China. Please feel free to wholesale high quality PCB depaneling machine for sale here and get quotation from our factory. Good service and competitive price are available.
PCB Automated Depanelling Machine, PCB Cut Router, Automatic PCB Separator Drilling and Routing Machine
